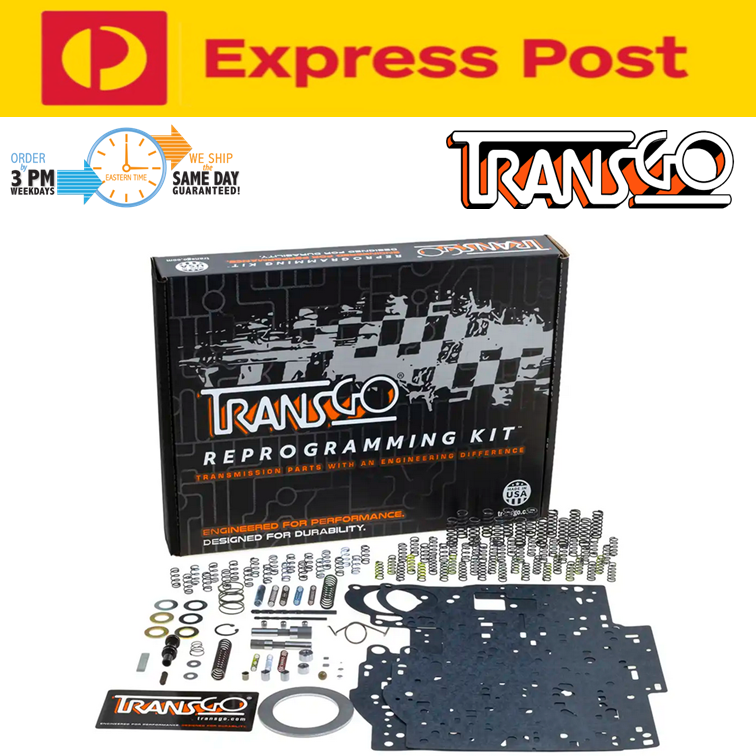

Transgo Shift Kit TH700R4 T700 Stage 2 & 3 Commodore VN to VP Automatic Trans

Transgo Shift Kit TH700R4 T700 Stage 2 & 3 Commodore VN to VP Automatic Trans

This 700-2&3 Reprogramming Kit fits 1982 to 1993 General Motors vehicles equipped with the 700R4/4L60 automatic transmission.

Features and benefits:

This TransGo Reprogramming Kit is designed for all-out shift performance.

There are two installation options with this kit. The first option gives you fully automatic shifts in “D” as well as the ability to hold any gear to any speed with the shift lever. It also allows for downshifts to any gear at any speed by moving the shift lever. High throttle 3-4 shift is controlled by the shift lever. The second option gives you manual shifts only. The transmission will start in whatever gear the shift lever is in and will shift to any gear at any speed by moving the shift lever. This kit also includes our # 7-CS 3-4 clutch piston return spring kit for the input drum which reduces centrifugal 3-4 clutch apply and failure in 1st gear at 5500 RPM or higher.

Lastly, the kit can be installed with the transmission in the vehicle or on the bench. However, transmission removal is necessary to install the clutch piston return spring kit.

Corrects/Prevents/Reduces:

• Burnt 2-4 band and 3-4 clutch plates
• Burnt forward and low/reverse clutch plates
• Provides fully automatic shifts
• Provides full manual control option for upshifting and downshifting 1st through 4th gear

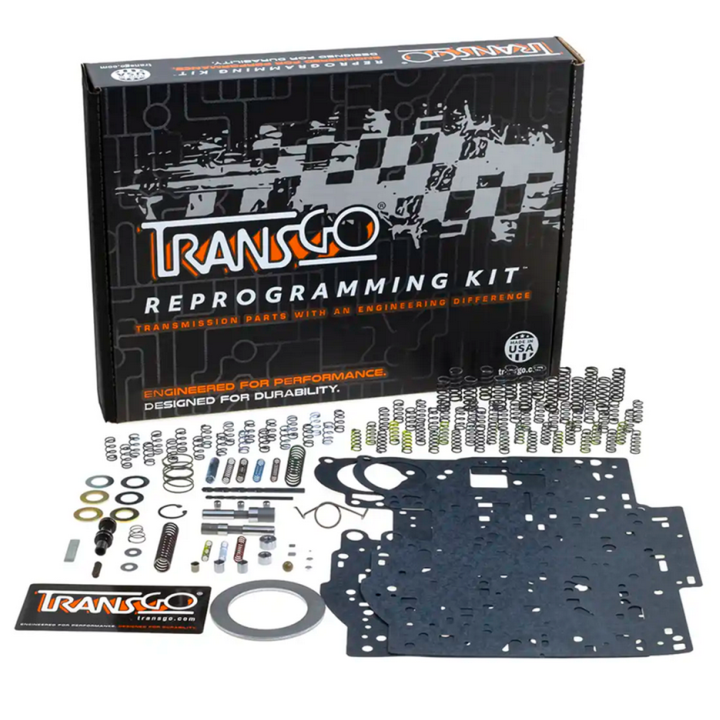

Includes:

• Pressure regulator valve spring and snap ring
• (3) Valve body plugs
• (2) Drill bits
• (3) TV valve springs, TV valve, spacer, and aluminum washer
• (3) 2^nd accumulator valve springs
• (2) Line bias valve springs
• (2) USA-made hardened steel 3-2 control valves, springs, and end plugs
• 3-4 Shift valve spring
• 2-3 Shift valve spring
• (5) Separator plate plugs
• (2) Case tapered orifice plugs
• Case tapered plug
• (6) Washers for band adjustment
• Servo spring
• Governor spring
• Valve body gaskets
• 3-4 clutch return springs and orifice capsule
• Forward clutch return springs and installation washer
