Sonnax TH700R4 4L60E 4L65E Smart Shell 77749-0K Heavy Duty Reaction Shell

$279.95
$279.95
Sale Sold out
Tax included. Shipping calculated at checkout.
SmartShell® Heavy Duty Reaction Shell Kit
In GM 4L60, 4L60-E, 4L65-E and 4L70-E units, bulky aftermarket shells always fall short when splines continue to strip and the shells break under stress. A chronic problem with both OE and thicker aftermarket shells is failure of the rear planetary bearing. From daily jobs to extreme builds, the Sonnax SmartShell heavy-duty reaction shell kit 7774902K is the only way to prevent shell failure AND protect the bearing.

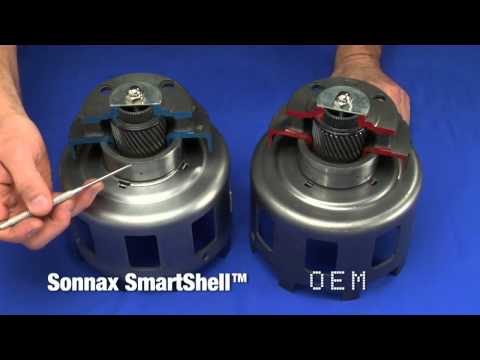

The SmartShell avoids the weight found in traditional, heavy-duty aftermarket shells thanks to a unique combination of improved design and manufacturing for a super strength shell that's only slightly bulkier than OE. To prevent thrust loads from overwhelming the captured planetary bearing, the SmartShell features a larger bearing and custom roller clutch race. These parts re-route thrust loads through the carrier, completely bypassing the delicate bearing.

Features:
  • Solves multiple problems in all performance applications
  • Stops spline stripping
  • Prevents hub breakage
  • Eliminates planetary bearing failure

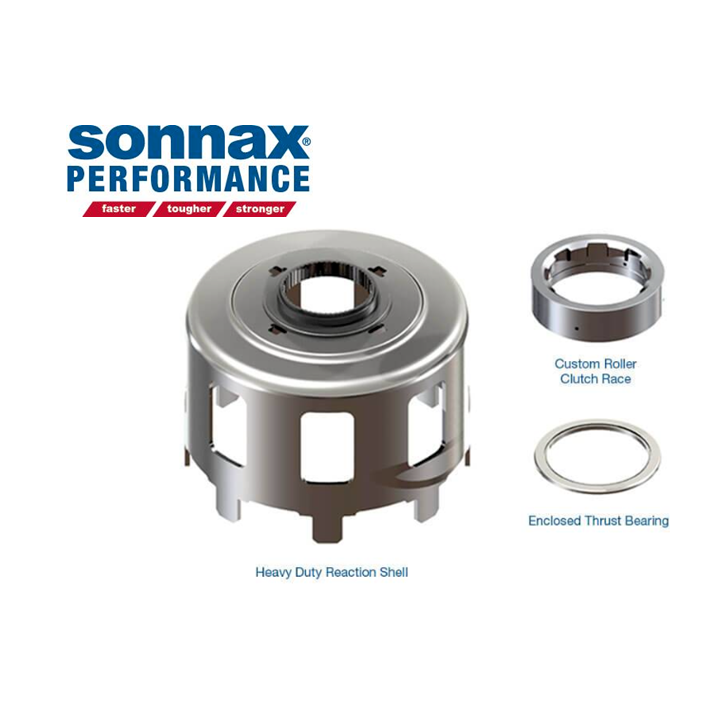

Contents:
  • Heavy Duty Reaction Shell
  • Enclosed Thrust Bearing
  • Custom Roller Clutch Race
